Brand: HiLetgo | Weight: 0.017999999999999995 kilograms | Dimensions: 0.508 x 5.588 x 11.43 centimeters
Key Features
- Operating life: More than 200000 cycles
- Current: <20mA
- Voltage: <12V DC
- Humidity: 95RH 40 degrees, 96 hours
- Terminal pull: 500gf/min
Product Description

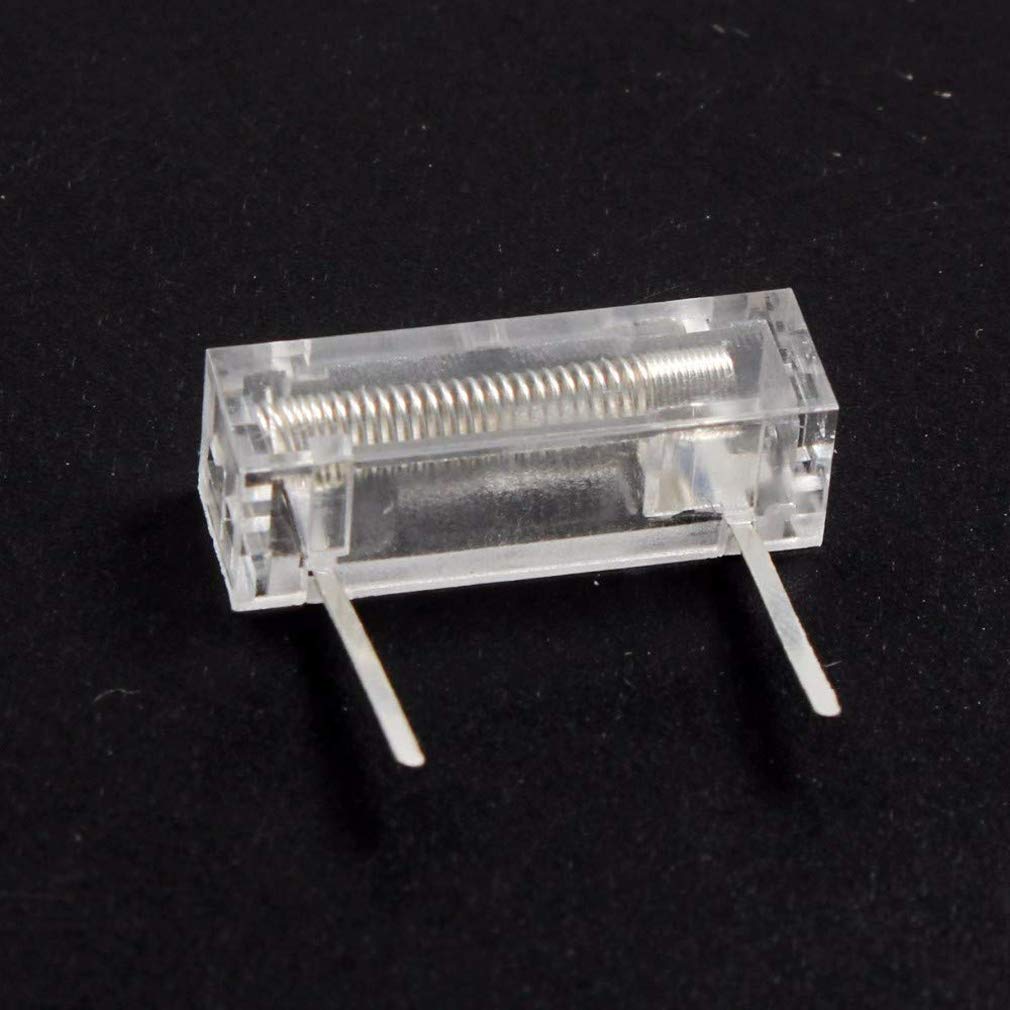

10pcs Impact Switch Shock Sensor Shake Switch
Description:
Output: Switch Sensor
Vibration switch vibration sensor / vibration sensor / shaking ball switch (rolling marbles type)
1. BL-540 is a spring-type, unidirectional vibration-sensing touch switch, which is triggered only by downward force.
2. This series of switches is in the open-circuit 0FF state when it is stationary. When it is subjected to downward force and reaches the corresponding vibration force, or when the moving speed reaches an appropriate high (eccentric) force, the conductive pins will generate instantaneous conduction and become an instantaneous ON state. ;When the external force disappears, the switch returns to the open circuit 0FF state
3. The trigger sensitivity of this series of switches can be adjusted according to customer requirements.
4. The switch life can reach 200,000 times under normal use.
5. Suitable for toys, burglar alarms, electronic scales and other electronic products
Operating life: More than 200000 cycles
Humidity: 95RH 40 degrees, 96 hours
Terminal pull: 500gf/min
Temperature: -40°C to 80°C
Open circuit resistance: >10M ohm
Closed circuit resistance: On time: 2ms
Current: Voltage:

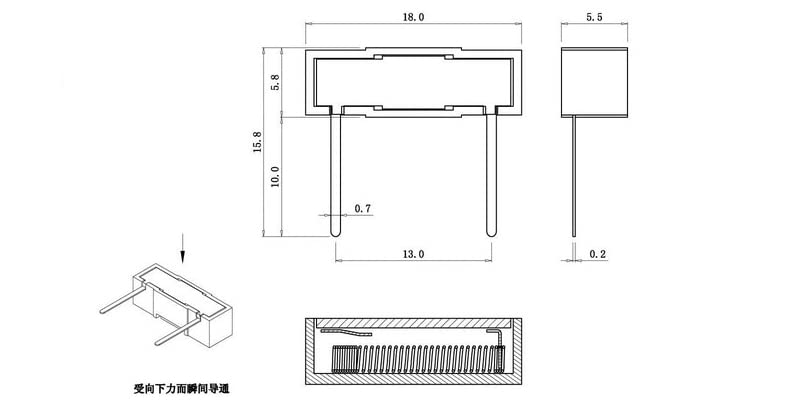

Dimension: 5.5mm * 5.5mm * 18MM
Package Includes:
10 * Impact Switch Shock Sensor Switch
