Brand: HiLetgo | Weight: 0.25 pounds | Dimensions: 5.2 x 6.1 x 10.4 centimeters
Key Features
- HiLetgo TDA7297 Version Audio Amplifier Board
- Voltage: DC 8-18V
- Power: 15W +15 W
- Output Impedance: 4-8 ohms
Product Description

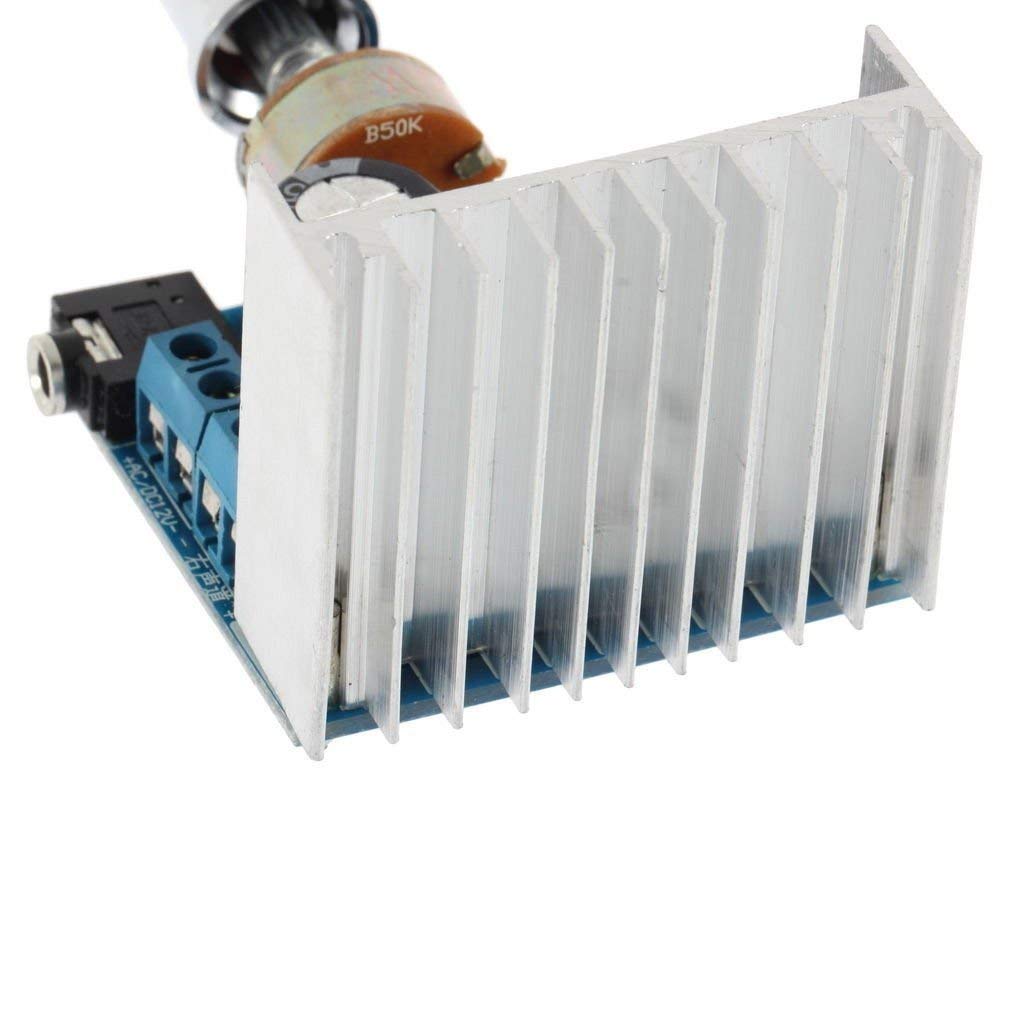

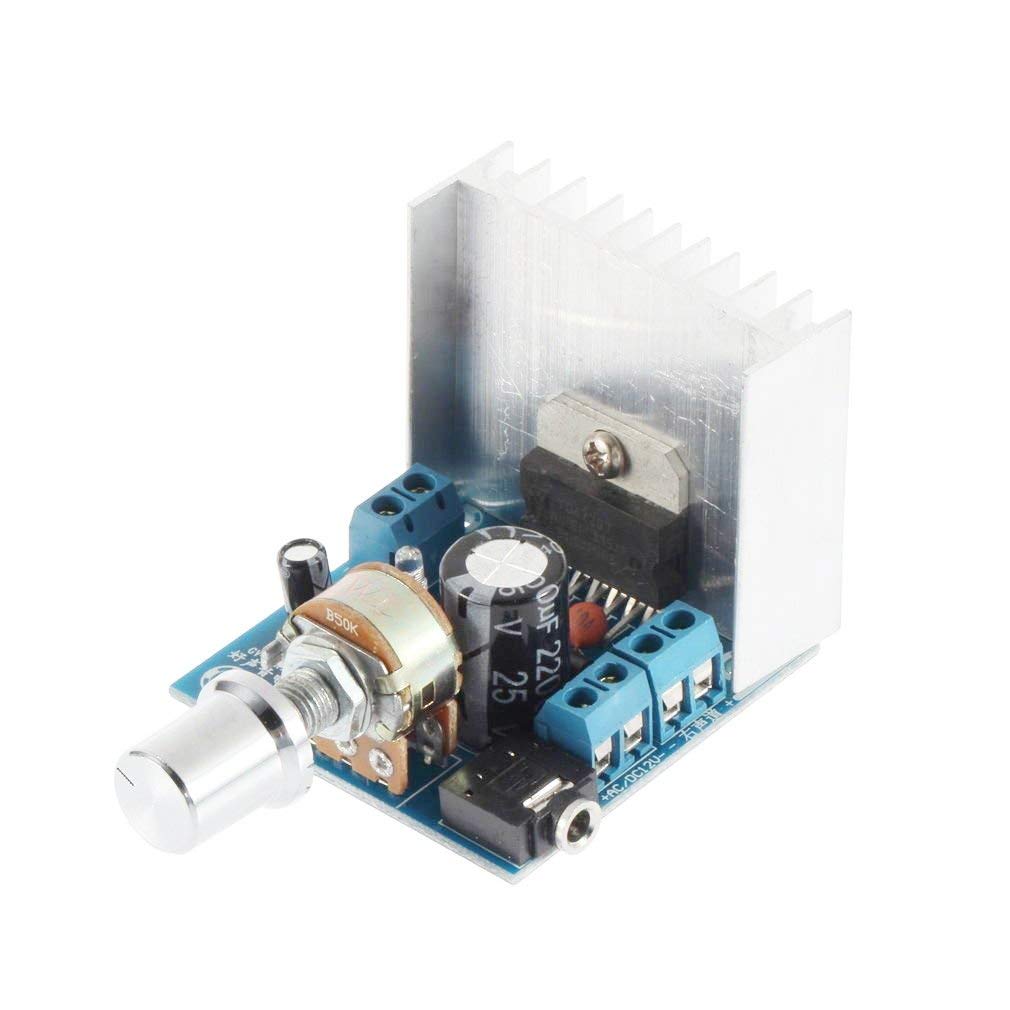

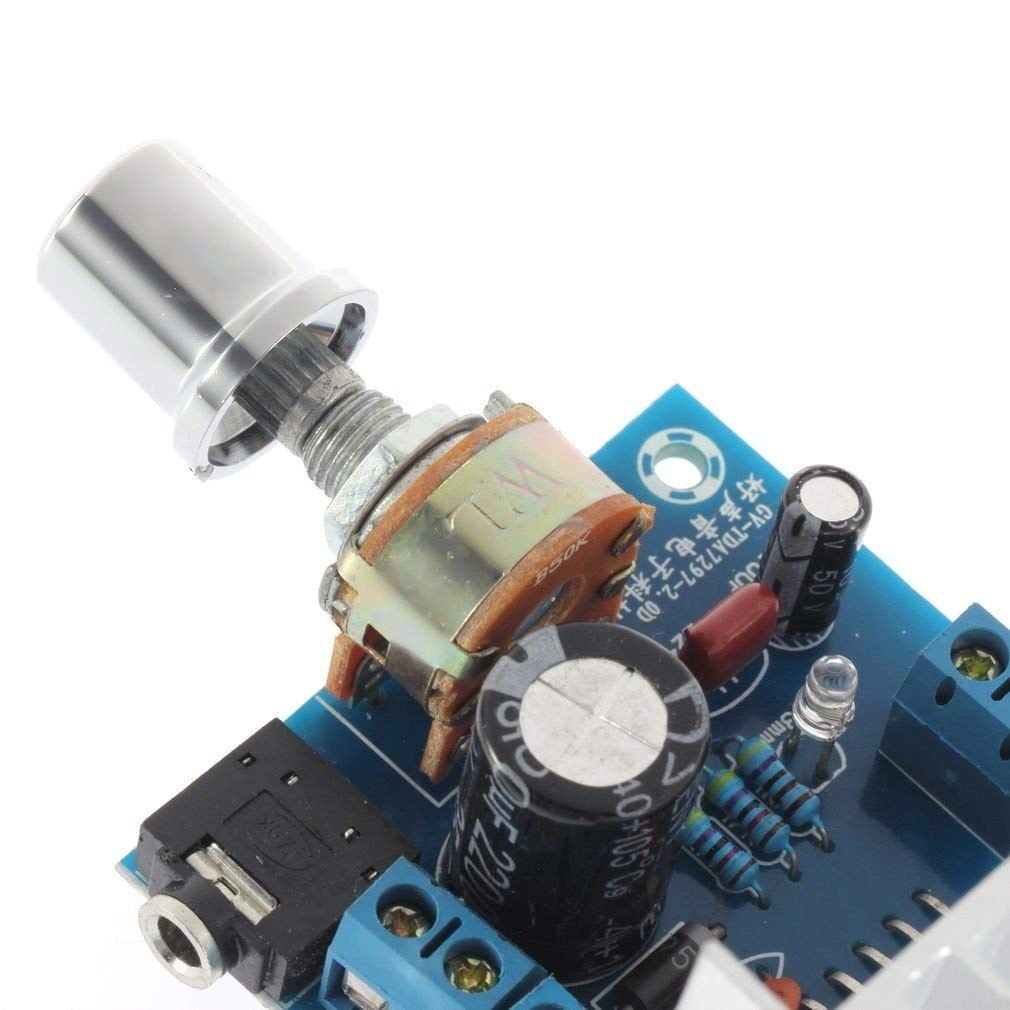

TDA7297 Version A 2*15W Audio Amplifier Board Dual-Channel AC/DC 12V
The amplifier board core is imported TDA7297 two-channel amplifier chip. DC power supply is designed to be used directly to a 12V battery supply voltage range :9-15V, recommended voltage 12V, output power up to 15W +15 W, peak power up to 30W +30 W, the sound volume is small but super shock for any occasion.
Dimension: 52x48x40mm (length x width x height, excluding potentiometer handle), ultra-small size suitable for any space.
Voltage: DC 8-18V, recommended DC voltage 12V, current 2A above
Power: 15W +15 W
Output Impedance: 4-8 ohms
Weight: 55g
Package Includes:

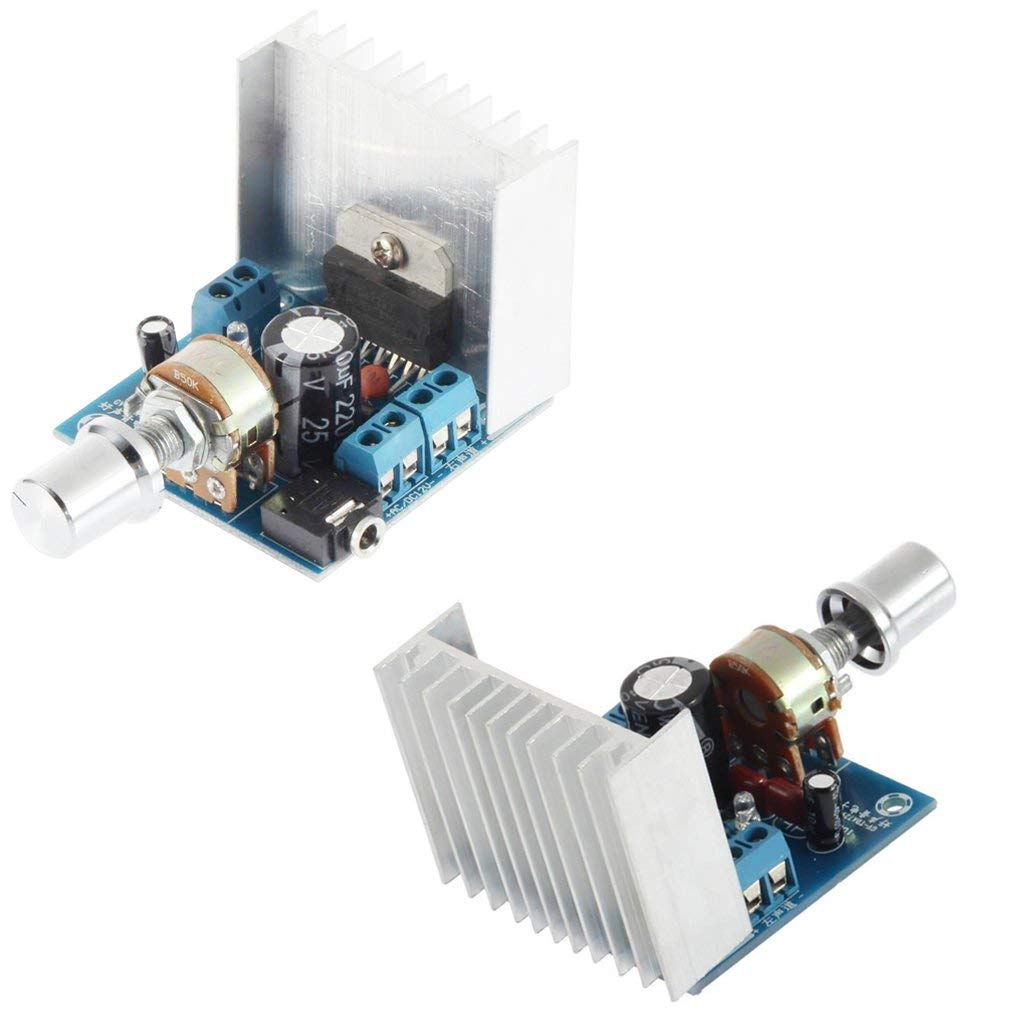

2 * TDA7297 Audio Amplifier Board
Product Images
