Brand: HiLetgo | Weight: 0.0019999795854029018 kilograms | Dimensions: 6.0 x 7.8 x 0.6 centimeters
Key Features
- Use STM8S103F3P6 as the master IC
- Support SWIM debug mode
Product Description

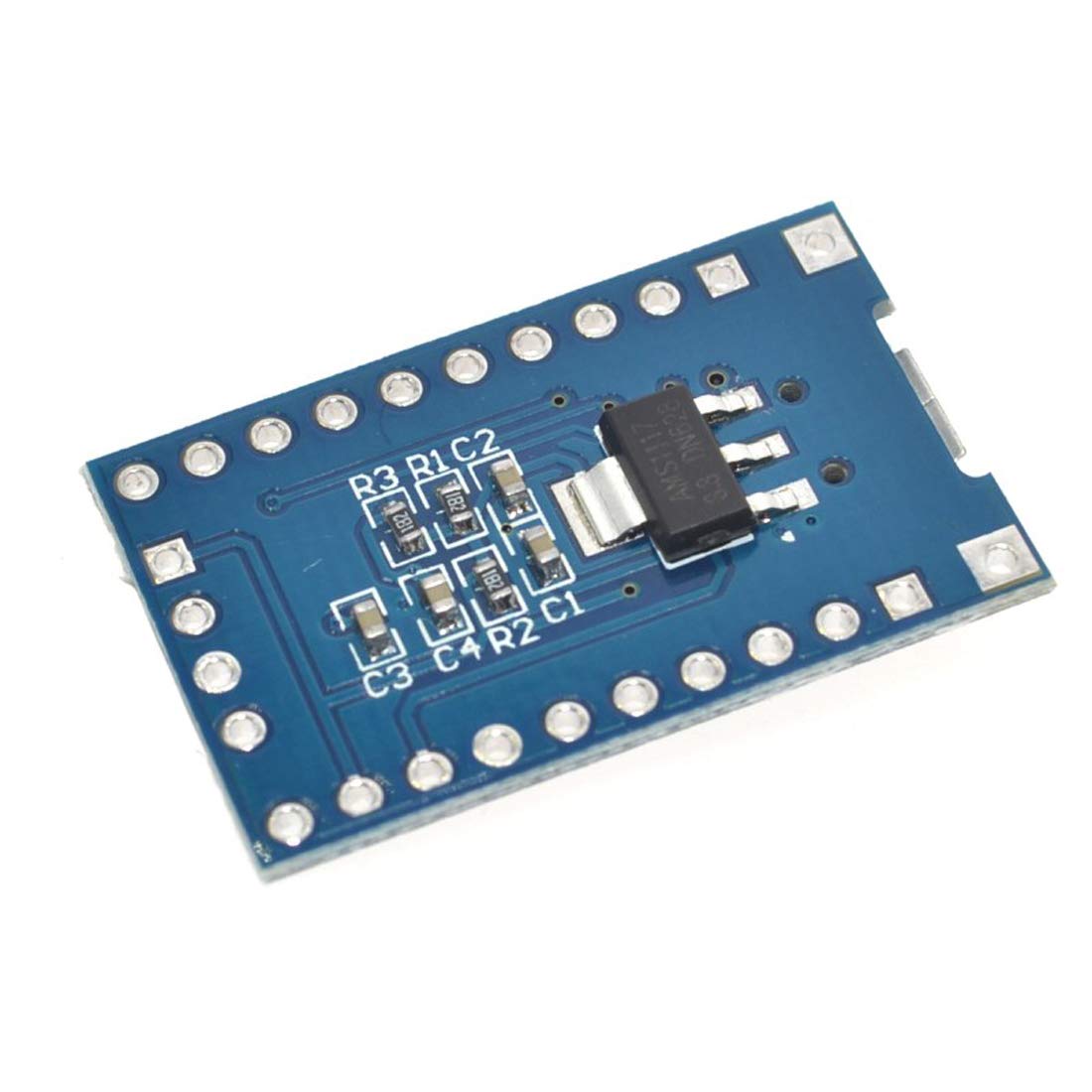

STM8S103F3P6 Minimum System Development Board Module Description:
The development board using Micro USB cable supply, data lines is simple and easy to get.
Features:
Use STM8S103F3P6 as the master IC

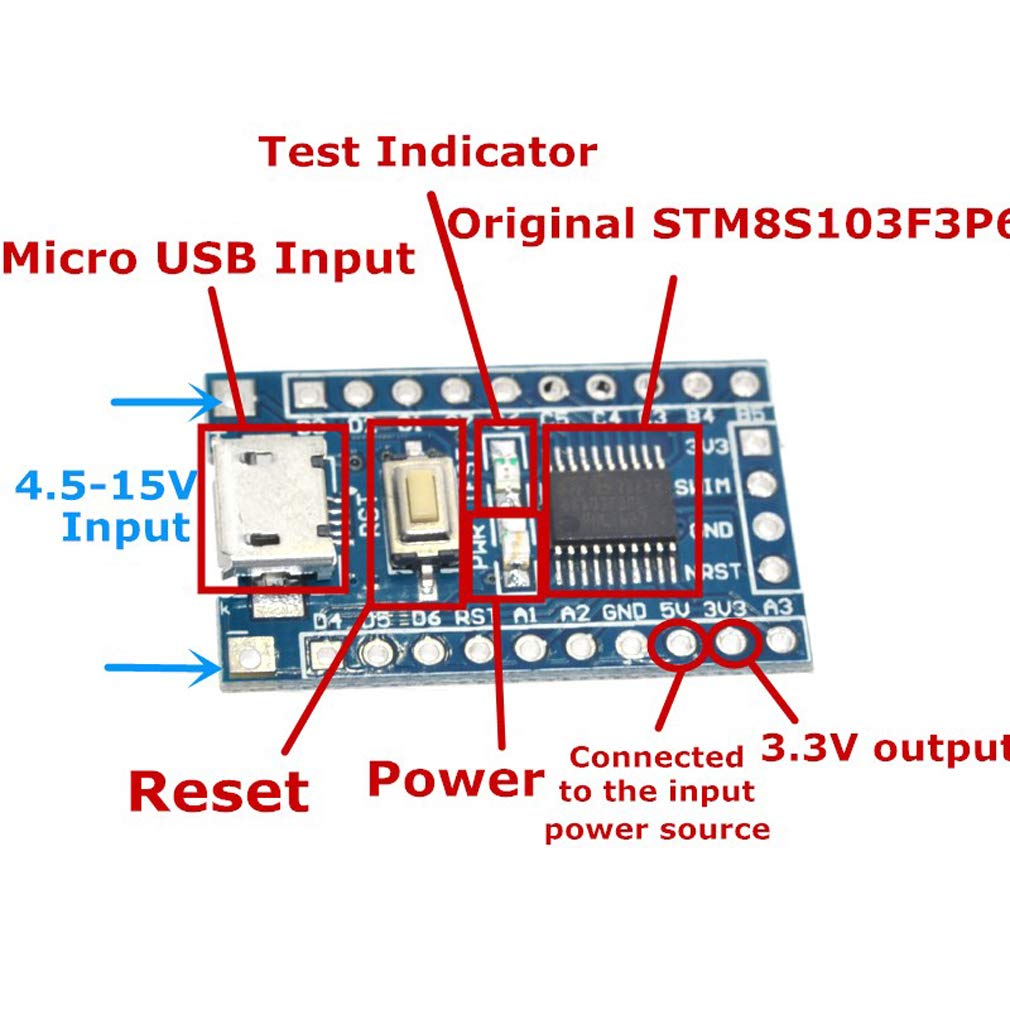

You can use 2.54 pin on the board or power supply pad, the pad when using power supply, input voltage range 4.5V-15V, can output to the outside through pin 3.3V
Note:
1.5V pin’s voltage is the input voltage of the module
2.Leads to all pins, the pins next to the pin marked the label, with a reset button, power LED, and the program demonstrates LED.
3. Support SWIM debug mode
Package Includes:
5 * STM8S103F3P6 Minimum System Development Board
