Brand: HiLetgo | Weight: 0.0181436948 kilograms | Dimensions: 1.7779999999999998 x 2.7940000000000005 x 7.62 centimeters
Key Features
- Using double-panel design PCB; MCU control, stable and reliable performance, strong anti-interference, will not trigger by mistake, superior performance than CD4013;
- With high-power regulator to provide adequate and stable voltage, and have enough cooling holes to ensure long-term stable and reliable products work;
- With anti-power reverse diode protection, a short time reverse power supply without any damage to the product;
- The use of genuine Songle relay control load, 250V 10A (AC) and 30V 10A (DC) under the load can withstand;
- Triggering can also be an external trigger switch, the product is equipped with a good seat and lead wire, more convenient to use.
Product Description
Product Usage:
Press the trigger button, the relay pull lock, press again, the relay is disconnected, you can also contact the trigger switch, and trigger with a low level.
Household appliances control, family lighting control, factory equipment control, for a variety of small current control high-voltage high-power product control.
Other Features:
1.Tactile switch as a product testing, direct testing of product stability;
2.Trigger can also be used to trigger other sensor modules, as long as the trigger is active low, the function has more extensions
Electrical parameters:
Supply voltage: 5V Supply current: more than 100mA
Load: 250V 10A (AC) or 30V 10A (DC)
Life expectancy: 1 million times
Product instructions:
1. Press the voltage version connected to the appropriate direct power supply;
2. Power can not be reversed, although the protection circuit, but can not be reversed for a long time;
3. The load power To leave a certain margin for the relay load should be avoided high-power (2000W or so) and long working environment, the product life will have a certain impact.
Package Included:
1*5V 1 Channel Latching Relay Module with Touch Bistable Switch

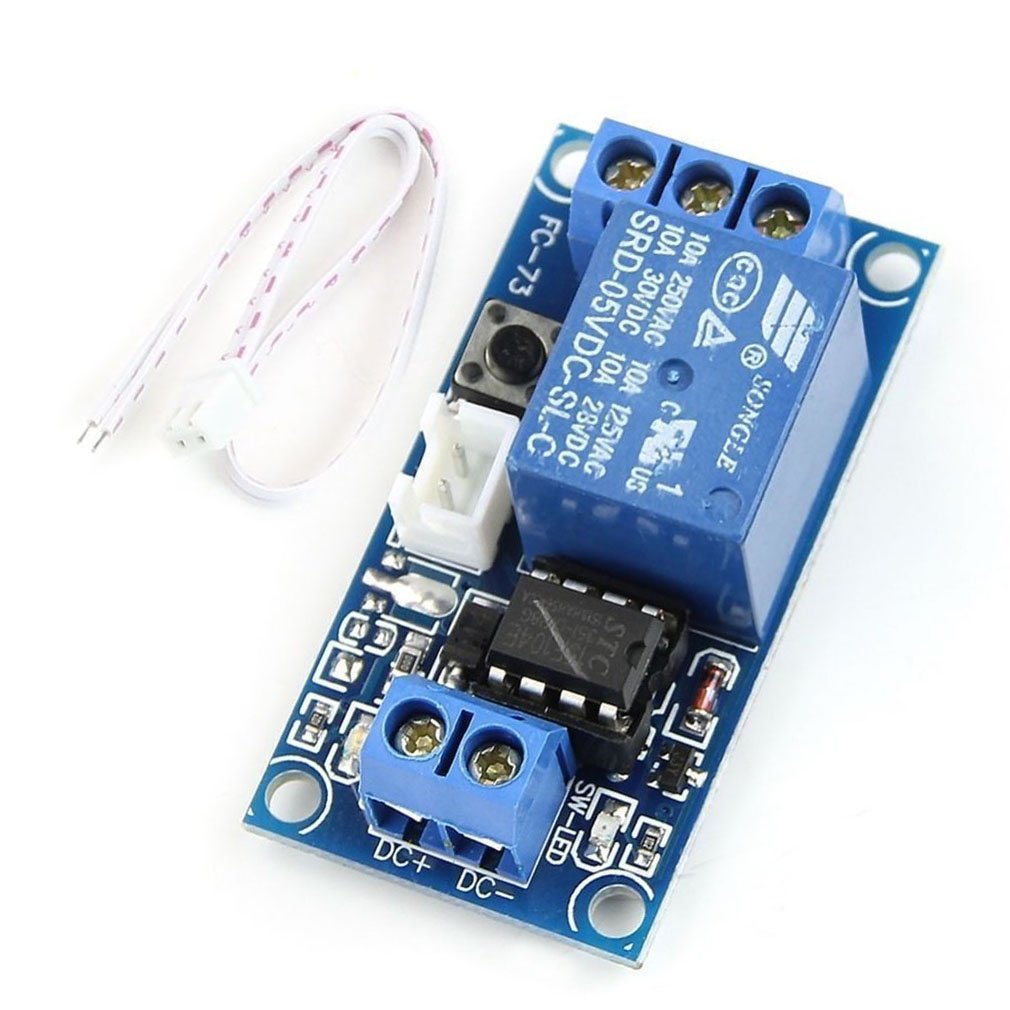

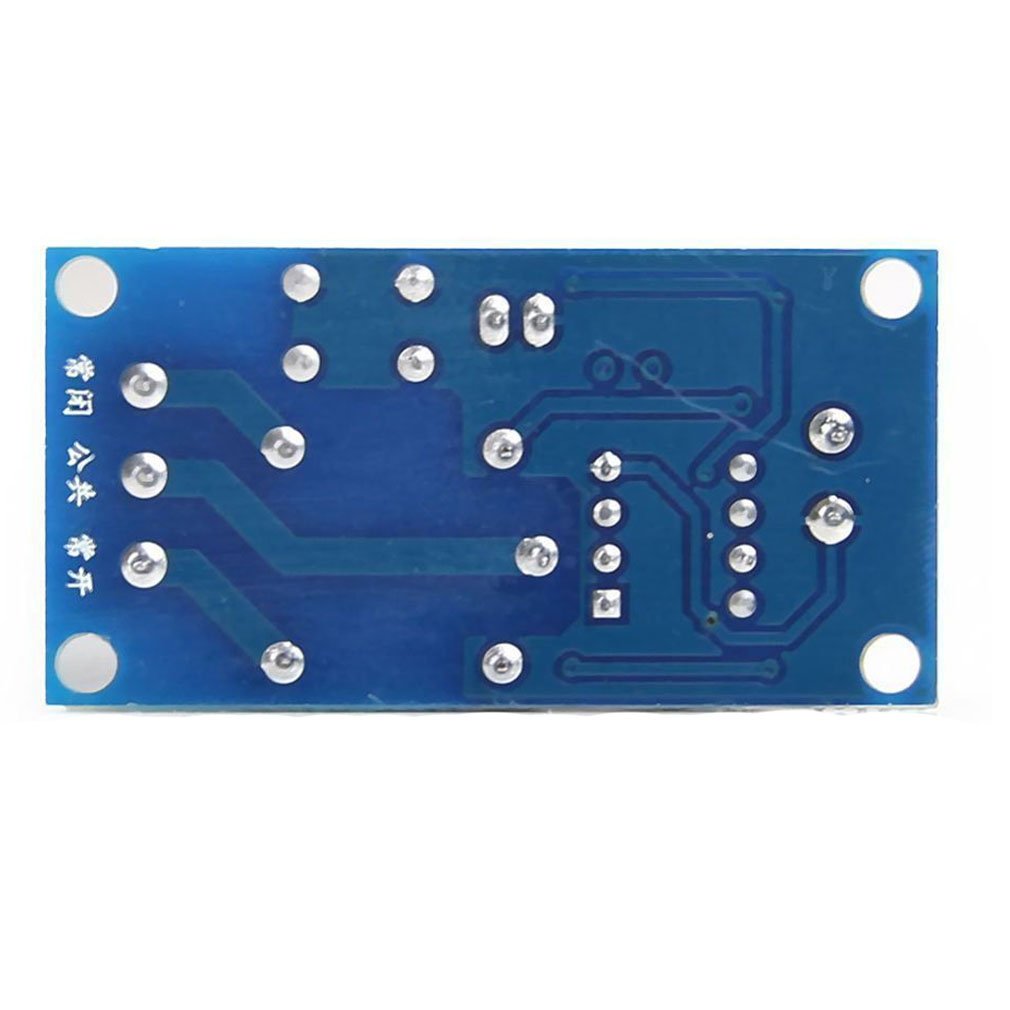

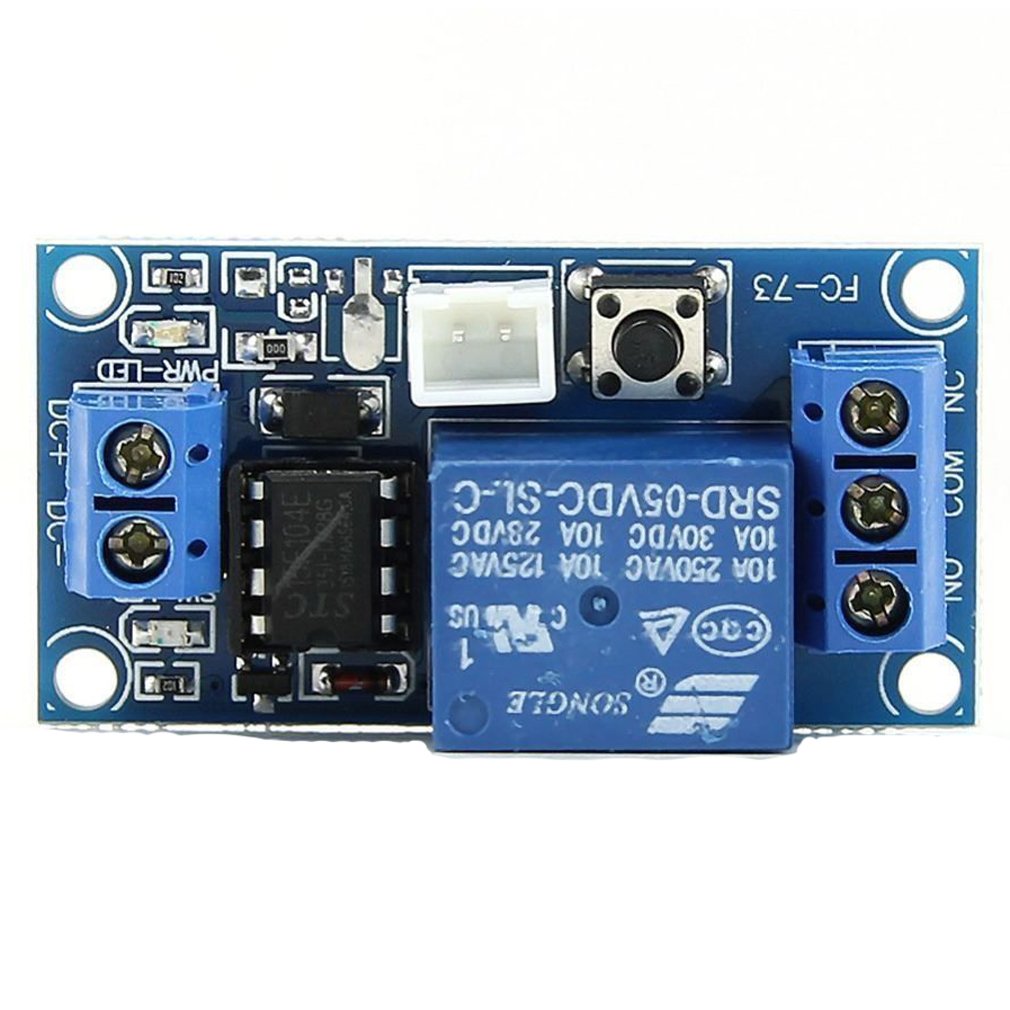

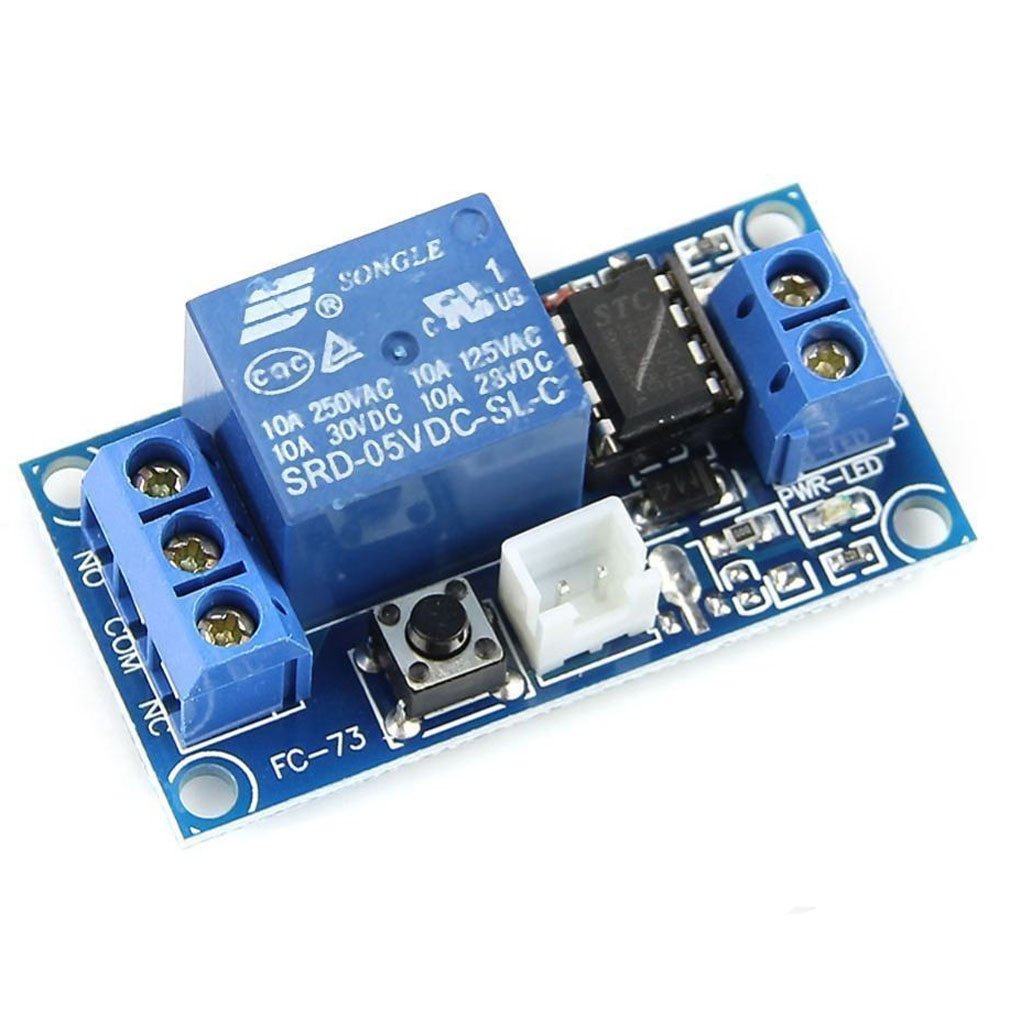

Product Images
