Brand: HiLetgo | Weight: 23.0 grams | Dimensions: 3.3 x 9.4 x 12.4 centimeters
Key Features
- This is a collection of emission and reception in one photoelectric sensor.
- Detection distance can be adjusted according to requirements.
- The sensor has a detection range, interference by visible light small, easy to assemble, easy to use and so on.
- Can be widely used in robot obstacle avoidance, assembly line and many other automated products.
- Photoelectric sensor (photoelectric switch) NPN normally open.
Product Description
Electrical Characteristics:
U: 5VDC
I: 100mA
Sn: 3-80CM
Size:
Diameter: 17MM
Sensor length: 45MM
Lead length: 45CM
Applications:
1. Production line automatic counting equipment
2. multi-function reminder
3. go maze robot
4. kitchen automation system
5. security anti-theft system
Photoelectric switch E18 technical parameters:
1. the output current DC / SCR / Relay Control output: 100mA / 5V power supply
2. current consumption DC 3. response time 4. pointing angle: ≤ 15 °, the effective distance 3-80CM adjustable
5. testing objects: transparent or opaque body
6. the working environment temperature: -25 ℃ ~ +55 ℃
7. the standard test objects: below the sun 10000LX incandescent 3000LX following
8. shell material: plastic
Package Included:

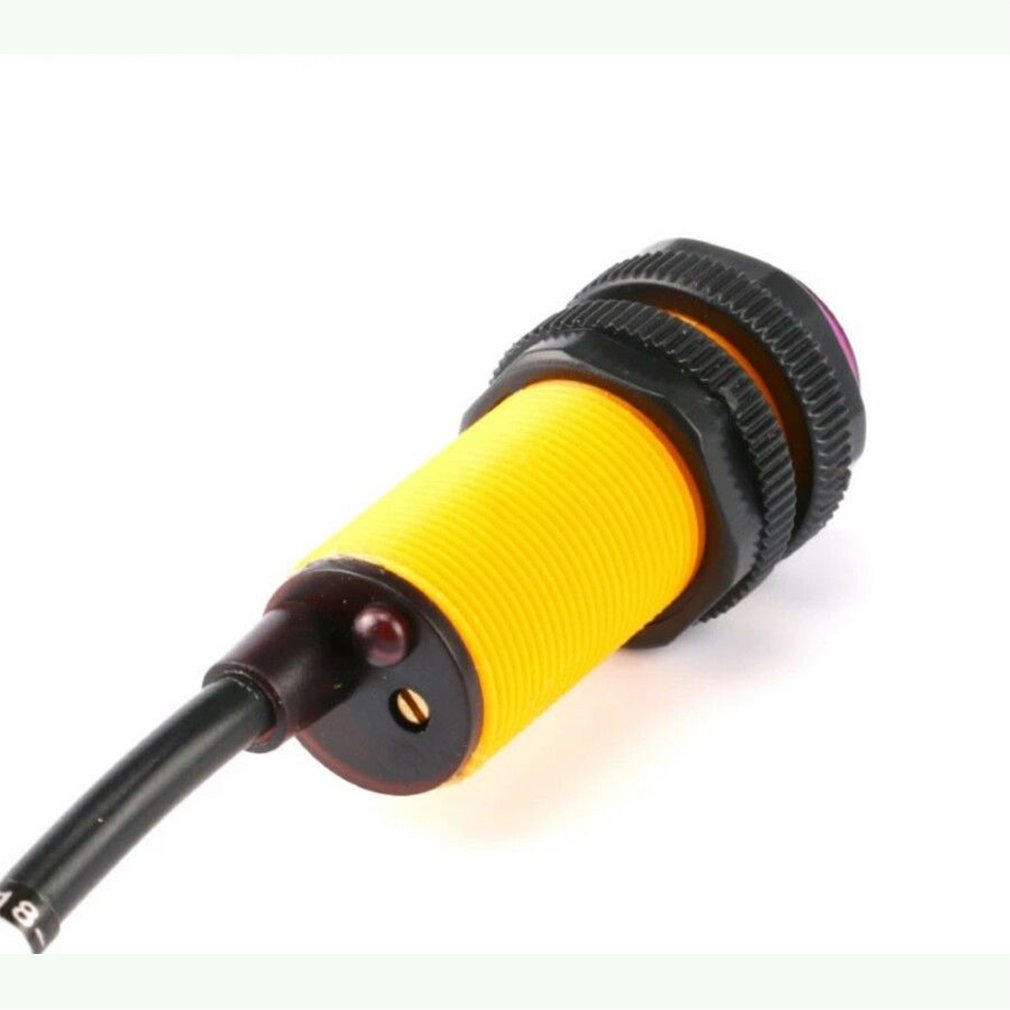

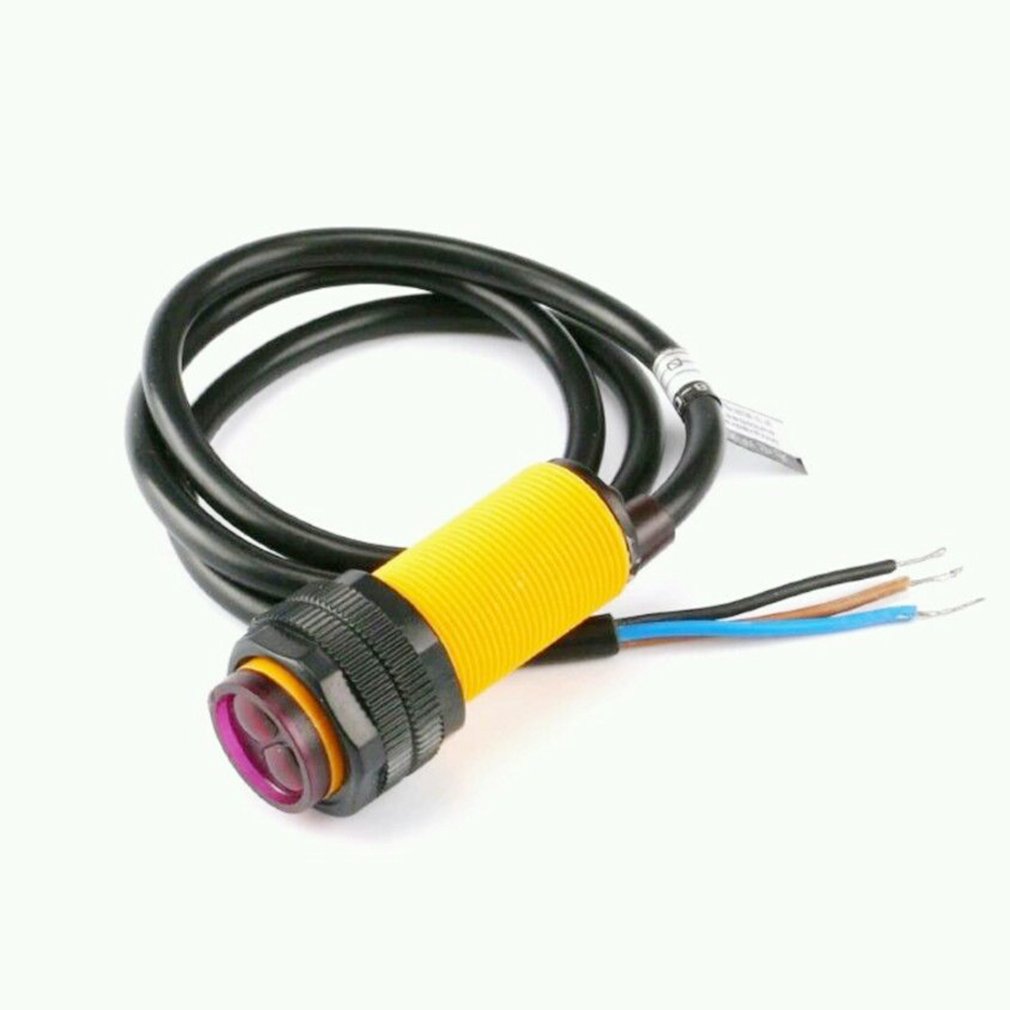

1*E18-D80NK Infrared Photoelectric Switch Obstacle Avoidance Sensor Module
