Brand: HiLetgo | Weight: 0.1 kilograms | Dimensions: 2.6924 x 8.6106 x 11.2014 centimeters
Key Features
- With 4 model GAIN parts, can auto work on different voltage
- Short-circuit and over-temperature protection
- Phoenix connectors for easy speaker hook up
- Rechargeable lithium batteries that last 10-15 hours of continuous use.
- 12" stereo wiring harness included
Product Description

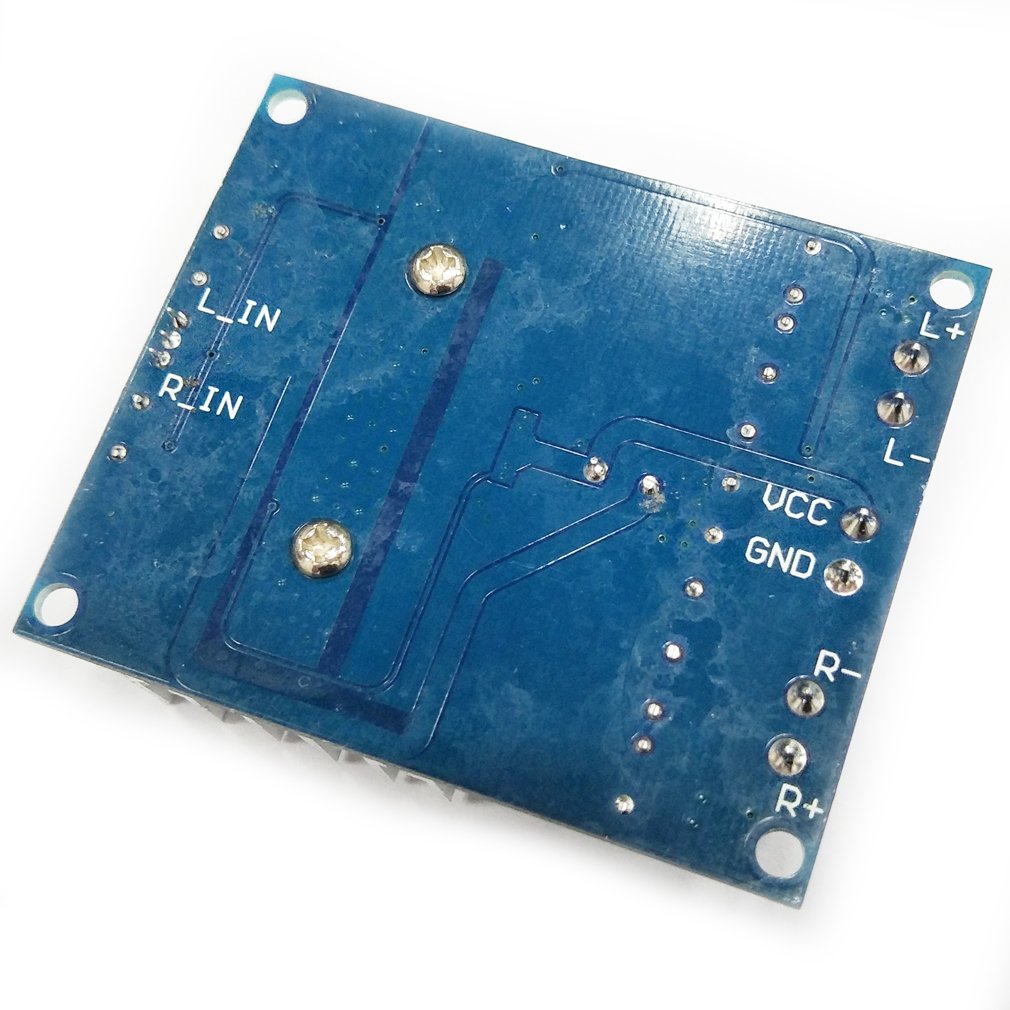

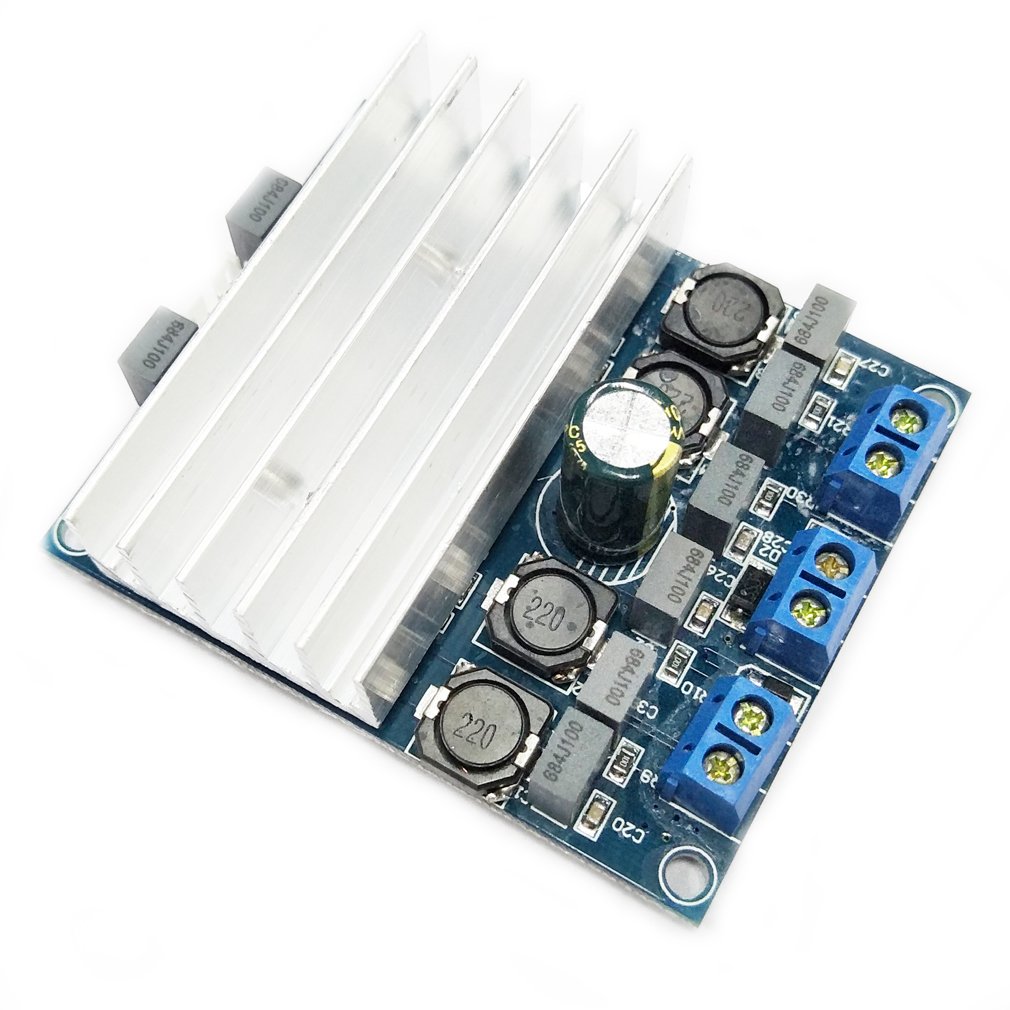

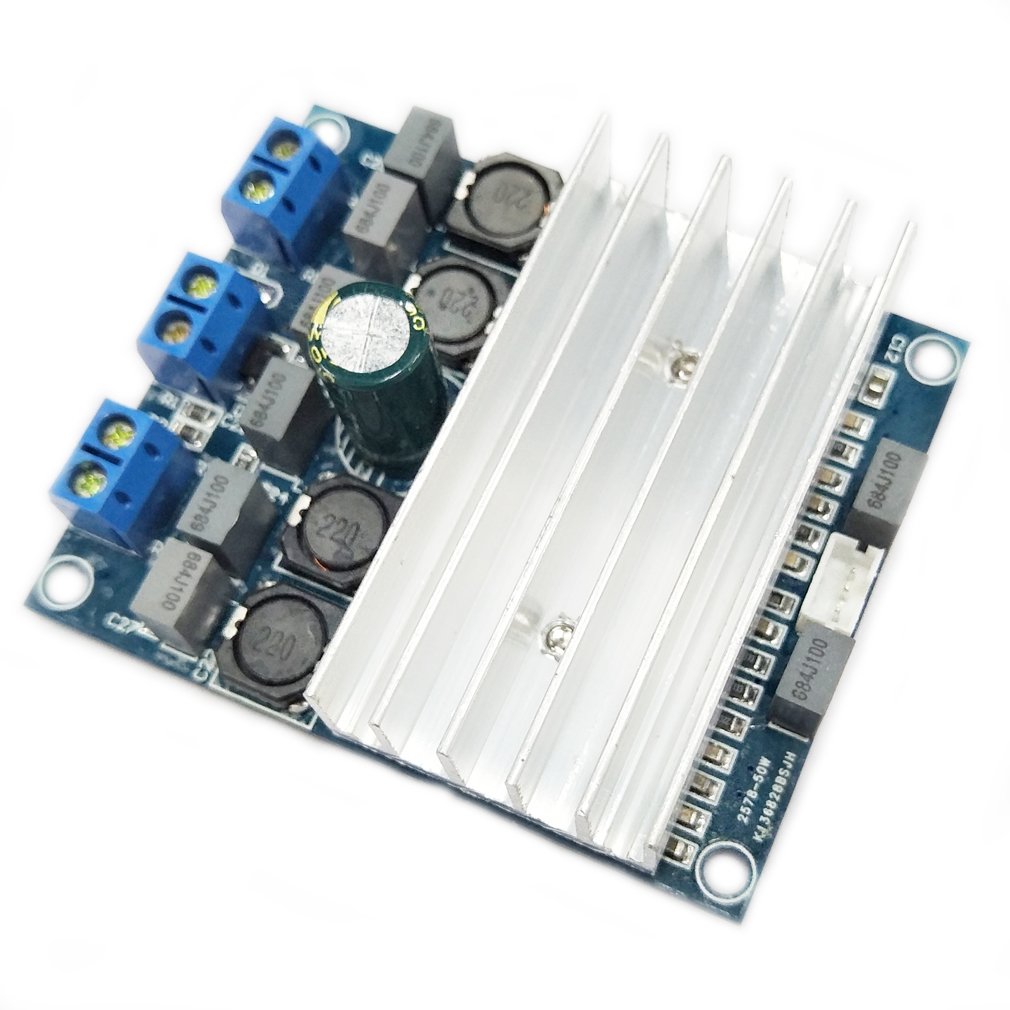

TDA7492 D Class High Power Digital Amplifier Board AMP Board 2*50W with Radiator Feature:
The use of high-speed SMT placement machine, over temperature reflow, the performance is very stable,
With 4 model GAIN parts, can auto work on different voltage.
Ultra-small 70X57MM
Comes with super output short-circuit and over-temperature overload and prevent the impact of the switch machine
TDA7492 chip. but with big power and good sound quality output
Note: When the speaker impedance is 4 ohms, the operating voltage must be less than 18V, the speaker impedance is 6 ohms, the operating voltage can not exceed 24V, the speaker impedance is 8 ohms, the working voltage can not exceed 26V, the power not to reverse the polarity.
Specification:
Power supply: Single-voltage 10-26V DC
Maximum power: 50W*2/8Ohm
Mono BTL power 100W / 4 Ohms
Size: 70*57mm*21mm
Product Images
